2SB565 - PNP Transistor

2SB565 Description

isc Silicon PNP Power Transistor 2SB565 .
Low Collector Saturation Voltage :VCE(sat)= -1. Collector-Emitter Breakdown Voltage- : V(BR)CEO= -50V(Min). Minimum Lot.

2SB565 Applications

* Designed for low frequency power amplifier and power switching applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -50 V VCEO Collector-Emitter Voltage -50 V VEBO Emitter-Base Voltage -4 V IC Collector Current-Continuous -4 A

📥 Download Datasheet

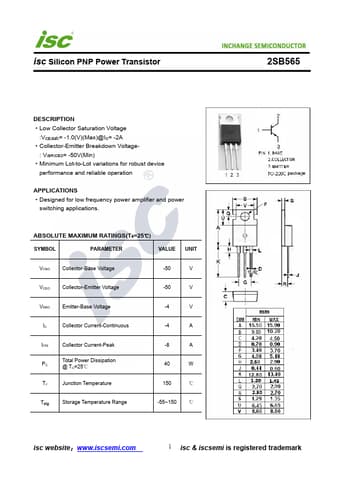

Preview of 2SB565 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SB565
Manufacturer
INCHANGE
File Size
214.00 KB
Datasheet
2SB565-INCHANGE.pdf
Description
PNP Transistor
