2SB503 - PNP Transistor

Product Overview

📥 Download Datasheet

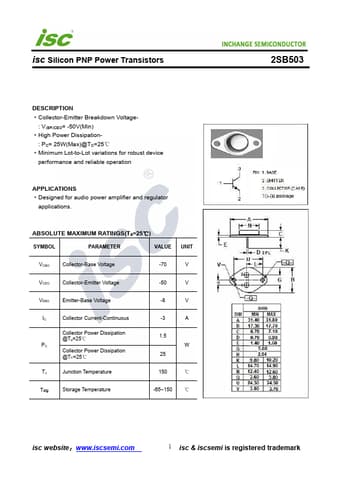

Datasheet preview – 2SB503

Datasheet Details

Part number 2SB503
Manufacturer INCHANGE
File Size 211.28 KB
Description PNP Transistor
Datasheet download datasheet 2SB503 Datasheet
Additional preview pages of the 2SB503 datasheet.

Product details

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= -50V(Min) High Power Dissipation- : PC= 25W(Max)@TC=25℃ Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for audio power amplifier and regulator applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -70 V VCEO Collector-Emitter Voltage -50 V VEBO Emitter-Base Voltage -8 V IC Collector Current-Continuous
