2SB503A - SILICON PNP TRANSISTOR

This page provides the datasheet information for the 2SB503A, a member of the 2SB502A SILICON PNP TRANSISTOR family.

Datasheet Summary

Features

  • :.
  • Low Saturation Voltage : V CE ( sat )=-l ,5V (Max. ) (l c=-3A).
  • Complementary to 2SD877.

📥 Download Datasheet

Datasheet preview – 2SB503A

Datasheet Details

Part number 2SB503A
Manufacturer Toshiba
File Size 45.54 KB
Description SILICON PNP TRANSISTOR
Datasheet download datasheet 2SB503A Datasheet
Additional preview pages of the 2SB503A datasheet.

📁 Similar Datasheet

  • 2SB503 - PNP Transistor (INCHANGE)
  • 2SB502 - PNP Transistor (INCHANGE)
  • 2SB506 - PNP Transistor (INCHANGE)
  • 2SB506 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SB507 - PNP Transistor (INCHANGE)
  • 2SB507 - Silicon PNP Power Transistors (SavantIC)
  • 2SB507 - PNP Epitaxial Silicon Transistor (GME)
  • 2SB507 - PNP Transistor (DC COMPONENTS)
  • 2SB507 - PNP Transistor (Hottech)
  • 2SB508 - PNP Transistor (INCHANGE)
Other Datasheets by Toshiba

Full PDF Text Transcription

Click to expand full text

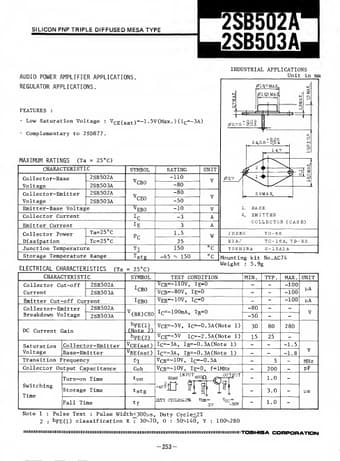

SILICON PNP TRIPLE DIFFUSED MESA TYPE A AUDIO POWER AMPLIFIER APPLICATIONS. REGULATOR APPLICATIONS. FEATURES : • Low Saturation Voltage : V CE ( sat )=-l ,5V (Max. ) (l c=-3A) • Complementary to 2SD877. INDUSTRIAL APPLICATIONS Unit in mm 01 §7 MAX. MAXIMUM RATINGS (Ta = 25 °c) CHARACTERISTIC SYMBOL RATING UNIT Collector-Base 2SB502A Voltage 2SB503A Collector-Emitter 2SB502A Voltage " 2SB503A Emitter-Base Voltage Collector Current Emitter Current Collector Power Ta=25°C Dissipation Tc=25°C Junction Temperature 'CBO 'CEO 'EBO IE -110 -80 -80 -50 -10 -3 1.5 25 150 1. BA S E 2. EMITTER COLLECTOR (CAS E) TOSHIBA TO-66 TC-16A, TB- 23 2-13A1 Storage Temperature Range stg ELECTRICAL CHARACTERISTICS (Ta = 25°C) -65 * 150 C [Mounting kit No.AC74 Weight : 5.
