2SB506 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SB506

Manufacturer:

INCHANGE

File Size:

175.65kb

Download:

📄 Datasheet

Description:

Pnp transistor.

  • Collector-Emitter Sustaining Voltage- : VCEO(SUS)= -100V(Min)
  • Low Collector Saturation Voltage- : VCE(sat)= -1.0V(M

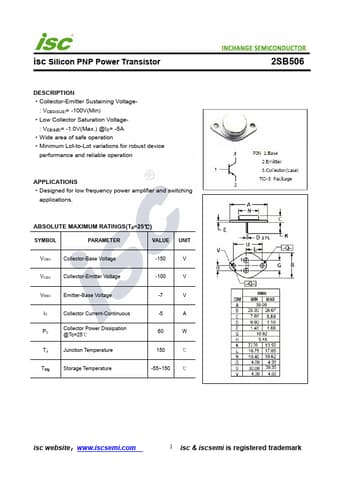

  • Datasheet Preview: 2SB506 📥 Download PDF (175.65kb)
    Page 2 of 2SB506

    2SB506 Application

    • Applications
    • Designed for low frequency power amplifier and switching applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER V
