2SB502 - PNP Transistor

Datasheet Summary

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= -80V(Min) High Power Dissipation- : PC= 25W(Max)@TC=25℃ Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS

applications.

📥 Download Datasheet

Datasheet preview – 2SB502

Datasheet Details

Part number 2SB502
Manufacturer INCHANGE
File Size 211.47 KB
Description PNP Transistor
Datasheet download datasheet 2SB502 Datasheet
Additional preview pages of the 2SB502 datasheet.

📁 Similar Datasheet

  • 2SB502A - SILICON PNP TRANSISTOR (Toshiba)
  • 2SB503A - SILICON PNP TRANSISTOR (Toshiba)
  • 2SB506 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SB507 - Silicon PNP Power Transistors (SavantIC)
  • 2SB507 - PNP Epitaxial Silicon Transistor (GME)
  • 2SB507 - PNP Transistor (DC COMPONENTS)
  • 2SB507 - PNP Transistor (Hottech)
  • 2SB509 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SB510 - NPN/PNP SILICON TRANSISTOR (ETC)
  • 2SB511 - SILICON POWER TRANSISTOR (SavantIC)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

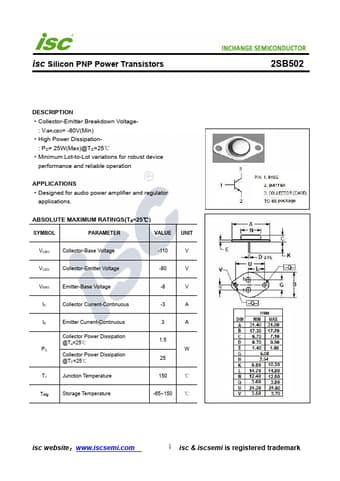

isc Silicon PNP Power Transistors DESCRIPTION ·Collector-Emitter Breakdown Voltage- : V(BR)CEO= -80V(Min) ·High Power Dissipation- : PC= 25W(Max)@TC=25℃ ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for audio power amplifier and regulator applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -110 V VCEO Collector-Emitter Voltage -80 V VEBO Emitter-Base Voltage -8 V IC Collector Current-Continuous -3 A IE Emitter Current-Continuous Collector Power Dissipation @Ta=25℃ PC Collector Power Dissipation @TC=25℃ TJ Junction Temperature 3 A 1.5 W 25 150 ℃ Tstg Storage Temperature -65~150 ℃ 2SB502 isc website：www.iscsemi.
