2SB508 Datasheet - INCHANGE

2SB508, PNP Transistor

isc Silicon PNP Power Transistor INCHANGE Semiconductor 2SB508 .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= -60V(Min). Low Collector-Emitter Saturation Voltage- : VCE(sat)= -1.

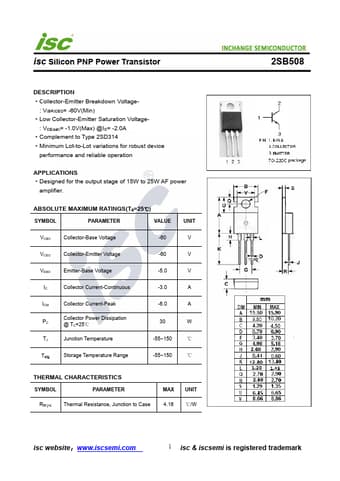

datasheet Preview Page 1 from Datasheet4u.com

2SB508-INCHANGE.pdf

2SB508 Datasheet Preview — Preview of 2SB508 PDF

Datasheet Details

Part number:

2SB508

Manufacturer:

INCHANGE

File Size:

189.21 KB

Description:

PNP Transistor

Applications

* Designed for the output stage of 15W to 25W AF power amplifier. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -60 V VCEO Collector-Emitter Voltage -60 V VEBO Emitter-Base Voltage -5.0 V IC Collector Current-Continuous -3.0 A ICM
