2SB564A - PNP Transistor

Datasheet Summary

Description

Designed for low frequency power amplifier applications.

📥 Download Datasheet

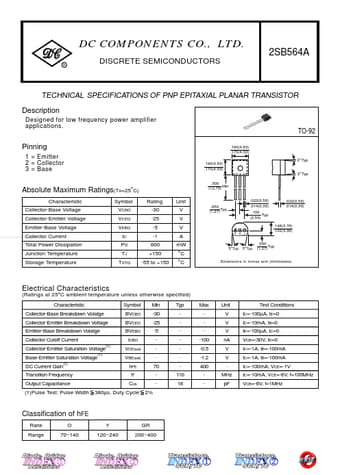

Datasheet preview – 2SB564A

Datasheet Details

Part number 2SB564A
Manufacturer Dc Components
File Size 237.15 KB
Description PNP Transistor
Datasheet download datasheet 2SB564A Datasheet
Additional preview pages of the 2SB564A datasheet.

📁 Similar Datasheet

  • 2SB564A - Transistors (Usha)
  • 2SB564 - SILICON TRANSISTOR (Micro Electronics)
  • 2SB560 - Epitaxial Planar Silicon Transistor (Sanyo Semicon Device)
  • 2SB560 - PNP Transistor (KOO CHIN)
  • 2SB561 - Silicon PNP Transistor (Hitachi Semiconductor)
  • 2SB561 - Silicon PNP Transistor (Renesas)
  • 2SB561 - SILICON PNP TRANSISTOR (LZG)
  • 2SB561 - PNP Transistor (SeCoS)
  • 2SB561 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
  • 2SB562 - Silicon PNP Transistor (Hitachi Semiconductor)
Other Datasheets by Dc Components

Full PDF Text Transcription

Click to expand full text
DC COMPONENTS CO., LTD. R 2SB564A DISCRETE SEMICONDUCTORS TECHNICAL SPECIFICATIONS OF PNP EPITAXIAL PLANAR TRANSISTOR Description Designed for low frequency power amplifier applications. TO-92 .190(4.83) .170(4.33) .190(4.83) .170(4.33) 2 Typ 2 Typ o o Pinning 1 = Emitter 2 = Collector 3 = Base Absolute Maximum Ratings(TA=25oC) Characteristic Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage www.DataSheet4U.com .500 Min (12.70) Symbol VCBO VCEO VEBO IC PD TJ TSTG Rating -30 -25 -5 -1 800 +150 -55 to +150 Unit V V V A mW o o 3 2 1 .050 Typ (1.27) .022(0.56) .014(0.36) .100 Typ (2.54) .022(0.56) .014(0.36) .148(3.76) .132(3.36) Collector Current Total Power Dissipation Junction Temperature Storage Temperature .050 o o 5 Typ. 5 Typ. (1.
