2SB561 - Silicon PNP Transistor

📥 Download Datasheet

Datasheet preview – 2SB561

Datasheet Details

Part number 2SB561
Manufacturer Hitachi Semiconductor
File Size 30.29 KB
Description Silicon PNP Transistor
Datasheet download datasheet 2SB561 Datasheet
Additional preview pages of the 2SB561 datasheet.

📁 Similar Datasheet

  • 2SB561 - Silicon PNP Transistor (Renesas)
  • 2SB561 - SILICON PNP TRANSISTOR (LZG)
  • 2SB561 - PNP Transistor (SeCoS)
  • 2SB561 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
  • 2SB560 - Epitaxial Planar Silicon Transistor (Sanyo Semicon Device)
  • 2SB560 - PNP Transistor (KOO CHIN)
  • 2SB562 - Silicon PNP Transistor (Renesas)
  • 2SB562 - PNP EPITAXIAL SILICON TRANSISTOR (UTC)
  • 2SB563 - PNP Transistor (INCHANGE)
  • 2SB563 - SILICON POWER TRANSISTOR (SavantIC)
Other Datasheets by Hitachi Semiconductor
  • 2SB562 - Silicon PNP Transistor
  • 2SB566 - Silicon PNP Transistor
  • 2SB566A - Silicon PNP Transistor
  • 2SB566AK - Silicon PNP Transistor
  • 2SB566K - Silicon PNP Triple Diffused Type Transistor
  • 2SB1000 - LOW FREQUENCY POWER AMPLIFIER
  • 2SB1000A - LOW FREQUENCY POWER AMPLIFIER
  • 2SB1001 - Silicon PNP Epitaxial Transistor

Full PDF Text Transcription

Click to expand full text

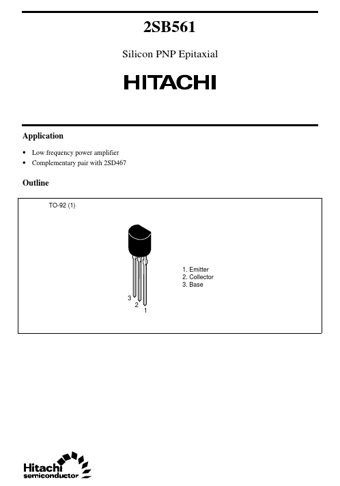

2SB561 Silicon PNP Epitaxial Application • Low frequency power amplifier • Complementary pair with 2SD467 Outline TO-92 (1) 1. Emitter 2. Collector 3. Base 3 2 1 2SB561 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC iC(peak) PC Tj Tstg Ratings –25 –20 –5 –0.7 –1.0 0.
