2SC2909, Silicon NPN transistor

2SC2909 Rev.E Mar.-2016 DATA SHEET / .
TO-92 NPN 。Silicon NPN transistor in a TO-92 Plastic Package.

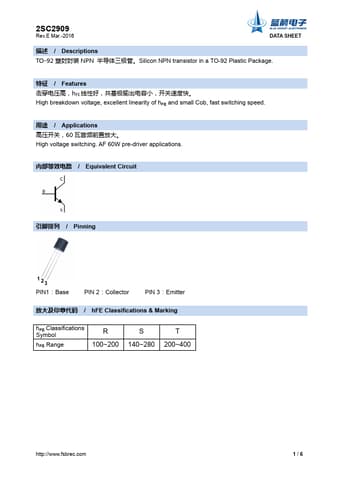

datasheet Preview Page 1 from Datasheet4u.com

2SC2909-BLUEROCKETELECTRONICS.pdf

2SC2909 Datasheet Preview — Preview of 2SC2909 PDF

Datasheet Details

Part number:

2SC2909

Manufacturer:

BLUE ROCKET ELECTRONICS

File Size:

1.24 MB

Description:

Silicon NPN transistor

Applications

* ，60 。 High voltage switching. AF 60W pre-driver applications. / Equivalent Circuit / Pinning 1 23 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range R 100~200 S 140~280 T 200~400 http://www. fsbrec. com 1/6 2SC2909 Rev. E Mar. -2
