2SD1781K Datasheet, Transistor, BLUE ROCKET ELECTRONICS

2SD1781K Features

• Transistor , 2SB1197K 。 Low VCE(sat),complements the 2SB1197K。 / Applications 。 Medium power amplifier applications. / Equivalent Circuit / Pinning 3 2 1 PIN1：Emitter PIN 2：Base PIN 3：Co

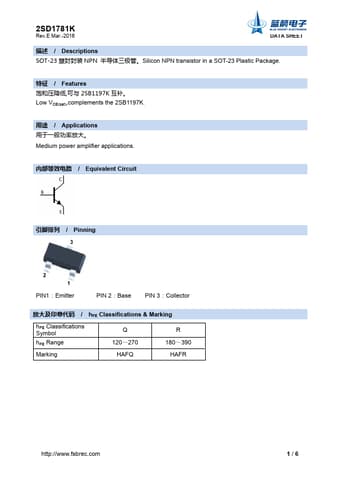

PDF File Details

Part number:

2SD1781K

Manufacturer:

BLUE ROCKET ELECTRONICS

File Size:

702.47kb

Download:

📄 Datasheet

Description:

Silicon npn transistor. SOT-23 NPN 。Silicon NPN transistor in a SOT-23 Plastic Package.  / Features , 2SB1197K 。 Low VCE(sat),complements the 2SB1197K

2SD1781K Application

• Applications 。 Medium power amplifier applications. / Equivalent Circuit / Pinning 3 2 1 PIN1：Emitter PIN 2：Base PIN 3：Collector / hFE Clas
