2SD1710F - Silicon NPN transistor

2SD1710F Description

2SD1710F Rev.F Mar.-2016 DATA SHEET / .
TO-220F NPN 。Silicon NPN transistor in a TO-220F Plastic Package.

2SD1710F Applications

* ，， DC-DC 。 Switching regulator applications, High voltage switching applications, High speed DC-DC converter applications. / Equivalent Circuit / Pinning 1 23 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking 。See Marking Instructions . http://www. fsbrec. com 1/6 2

📥 Download Datasheet

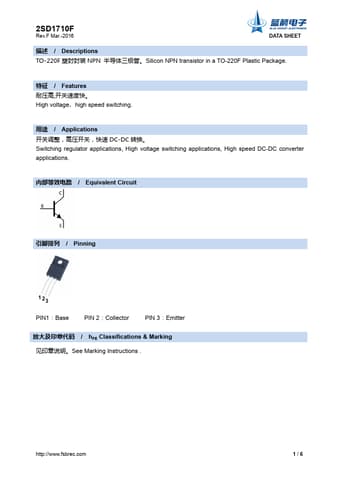

Preview of 2SD1710F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SD1710F
Manufacturer
BLUE ROCKET ELECTRONICS
File Size
796.58 KB
Datasheet
2SD1710F-BLUEROCKETELECTRONICS.pdf
Description
Silicon NPN transistor
