2SD1710 - NPN Transistor

2SD1710 Description

isc Silicon NPN Power Transistor .
High Breakdown Voltage- : VCBO= 1500V (Min). High Switching Speed. High Reliability. Minimum Lot-to-Lot variations for robust device.

2SD1710 Applications

* Color TV horizontal deflection output
* Color display horizontal deflection output ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1500 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 6 V IC Collector Current- Conti

📥 Download Datasheet

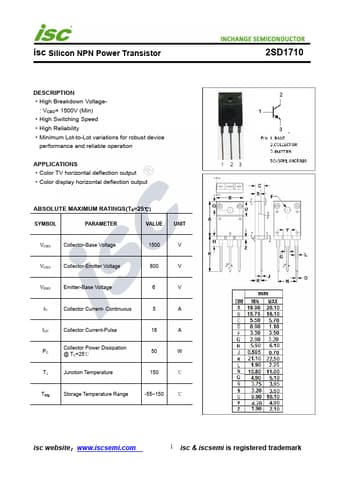

Preview of 2SD1710 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD1710
Manufacturer
INCHANGE
File Size
212.09 KB
Datasheet
2SD1710-INCHANGE.pdf
Description
NPN Transistor
