2SD1716 - Power Transistor

2SD1716 Description

isc Silicon NPN Power Transistor 2SD1716 .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= 160V(Min. Good Linearity of hFE. Wide Area of Safe Operation. Complement to Type 2.

2SD1716 Applications

* Designed for high power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 160 V VCEO Collector-Emitter Voltage 160 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 12 A ICP Collector Current-Pul

📥 Download Datasheet

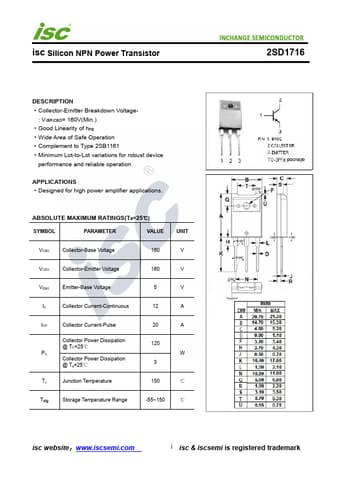

Preview of 2SD1716 PDF
datasheet Preview Page 2
