LV10100E - Schottky Diode

LV10100E Description

LV10100E Rev.F May.-2016 / .
TO-277  。 TO-277 Plastic package Schottky diode .

LV10100E Applications

* 、、，，。 For use in low voltage,high frequency inverters, free wheeling, and polarity protection applications. / Equivalent Circuit / Pinning 1 3 2 PIN1：Anode PIN 2：Cathode PIN 3：Anode / hFE Classifications & Marking 。See Marking Instructions. Suggested Pad layout http://www. fsbrec. com 1/6 LV

📥 Download Datasheet

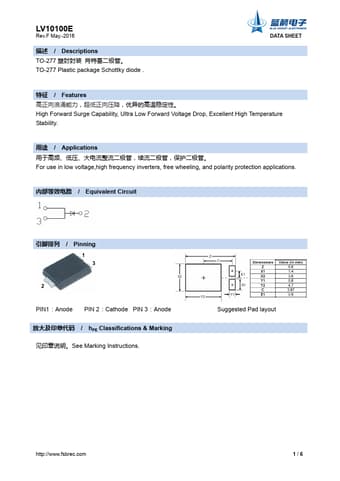

Preview of LV10100E PDF
datasheet Preview Page 2 datasheet Preview Page 3
