SF-0402S125-2, SF-0402S050-2 Datasheet - BOURNS

SF-0402S125-2, SF-0402S050-2, Slow Blow Surface Mount Fuses

*RoHS * *CHOAML&POLGIAENNTFREE SinglFuse™ SF-0402S Series

Features

* Slow blow thin film chip fuse for overcurrent protection
* 1005 (EIA 0402) miniature footprint
* Surface mount packaging for automated assembly
* UL 248-14 compliant
* RoHS compliant
* and halogen free
* SF-0402S Series - Slow Blow Surface Mount Fuses Clearing Time

Applications

* The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www. bourns. com/docs/legal/disclaimer. pdf. SinglFuse™ SF-0402S Series Applications
* Portable memory
* Cell phones
* LCD monitors
* Rec

SF-0402S050-2-BOURNS.pdf

This datasheet PDF includes multiple part numbers: SF-0402S125-2, SF-0402S050-2. Please refer to the document for exact specifications by model.

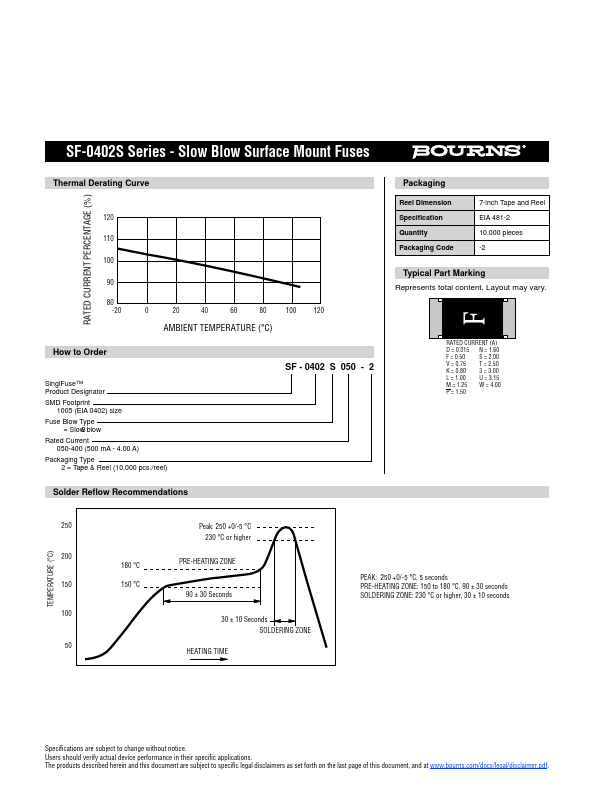

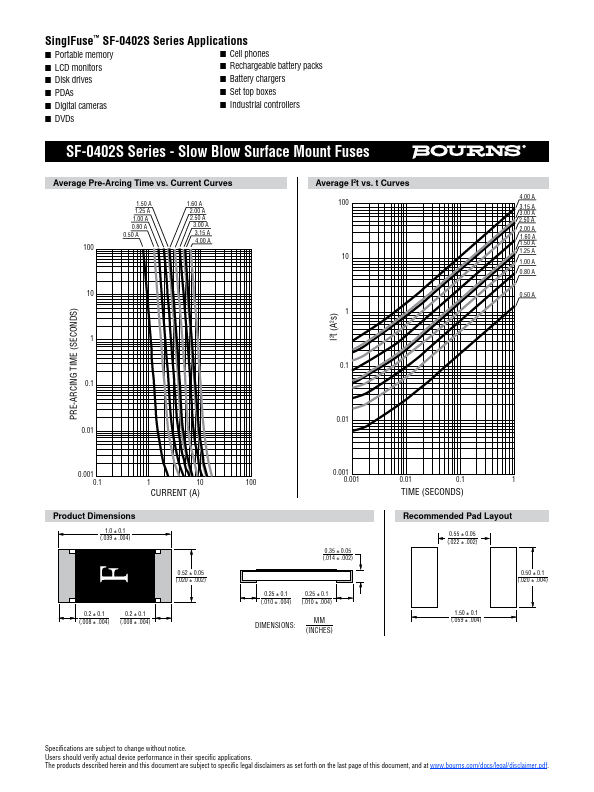

SF-0402S125-2 Datasheet Preview Page 2 SF-0402S125-2 Datasheet Preview Page 3

Datasheet Details

Part number:

SF-0402S125-2, SF-0402S050-2

Manufacturer:

BOURNS

File Size:

232.00 KB

Description:

Slow blow surface mount fuses.

Note:

This datasheet PDF includes multiple part numbers: SF-0402S125-2, SF-0402S050-2.
Please refer to the document for exact specifications by model.
