SF-1206S1000W-2 - Slow Blow Wire Core Surface Mount Fuses

Product Overview

BOURNS

Part number	SF-1206S1000W-2
Manufacturer	BOURNS
File Size	256.33 KB
Description	Slow Blow Wire Core Surface Mount Fuses
Datasheet	SF-1206S1000W-2 Datasheet
Note	This datasheet PDF includes multiple part numbers: SF-1206S1000W-2, SF-1206S150W-2. Please refer to the document for exact specifications by model.

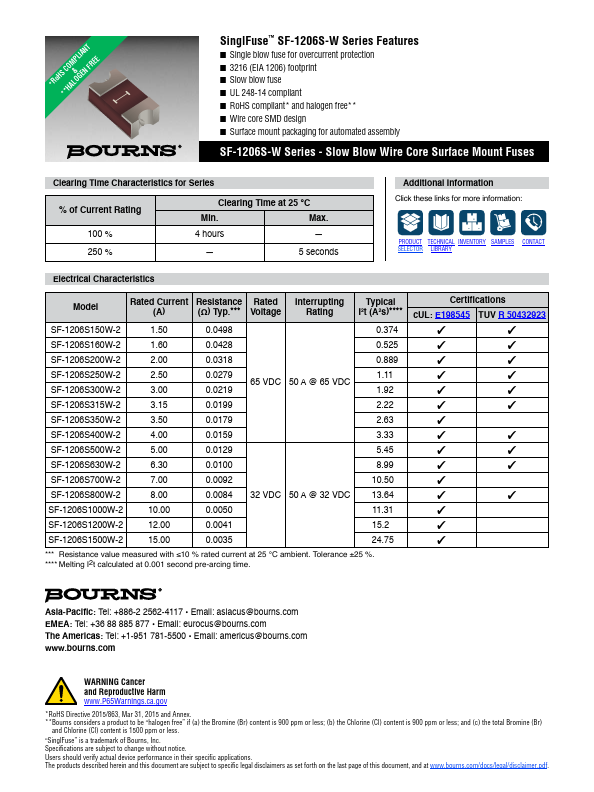

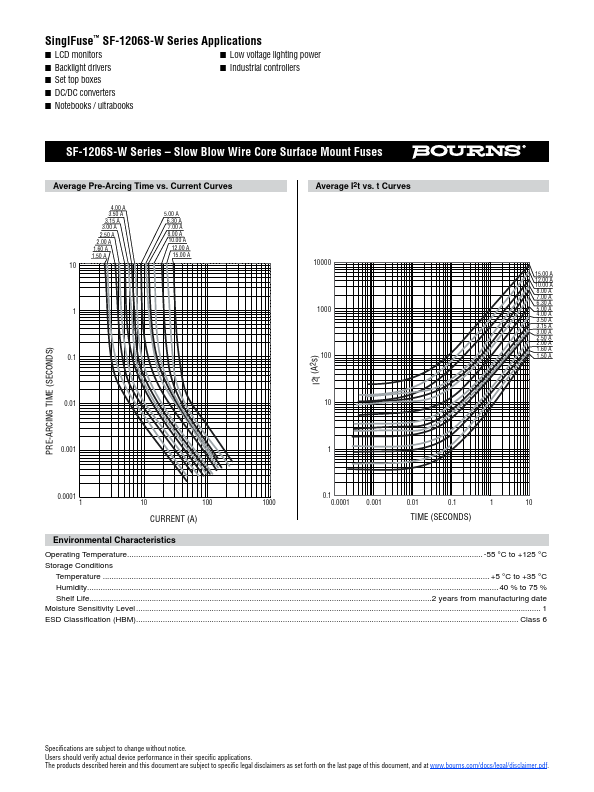

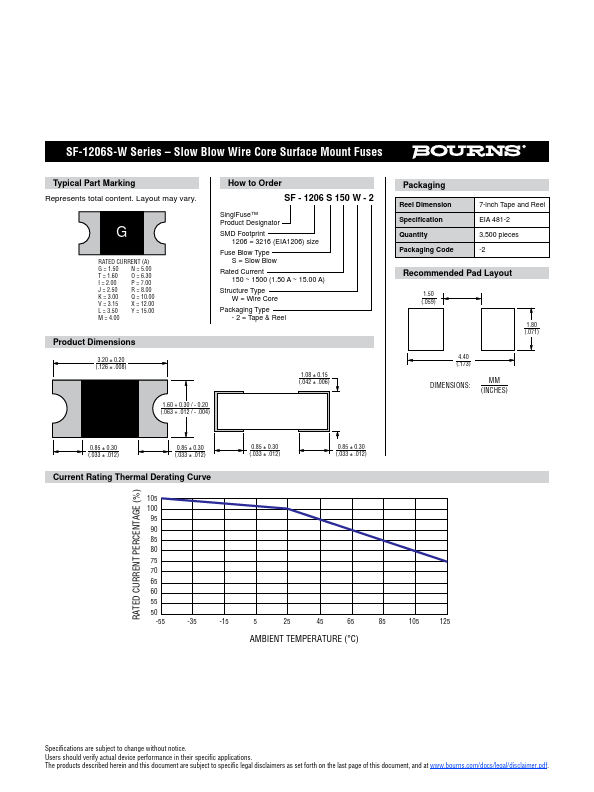

Additional preview pages of the SF-1206S1000W-2 datasheet.

Single blow fuse for overcurrent protection.
3216 (EIA 1206) footprint.
Slow blow fuse.
UL 248-14 compliant.
RoHS compliant.
and halogen free.
Wire core SMD design.
Surface mount packaging for automated assembly SF-1206S-W Series - Slow Blow Wire Core Surface Mount Fuses Clearing Time Characteristics for Series % of Current Rating 100 % Clearing Time at 25 °C Min. Max. 4 hours.
250 %.
5 seconds Additional Information.
