SF-1206S150-2 - Slow Blow Surface Mount Fuses

Product Overview

BOURNS

Part number	SF-1206S150-2
Manufacturer	BOURNS
File Size	230.51 KB
Description	Slow Blow Surface Mount Fuses
Datasheet	SF-1206S150-2 Datasheet
Note	This datasheet PDF includes multiple part numbers: SF-1206S150-2, SF-1206S050-2. Please refer to the document for exact specifications by model.

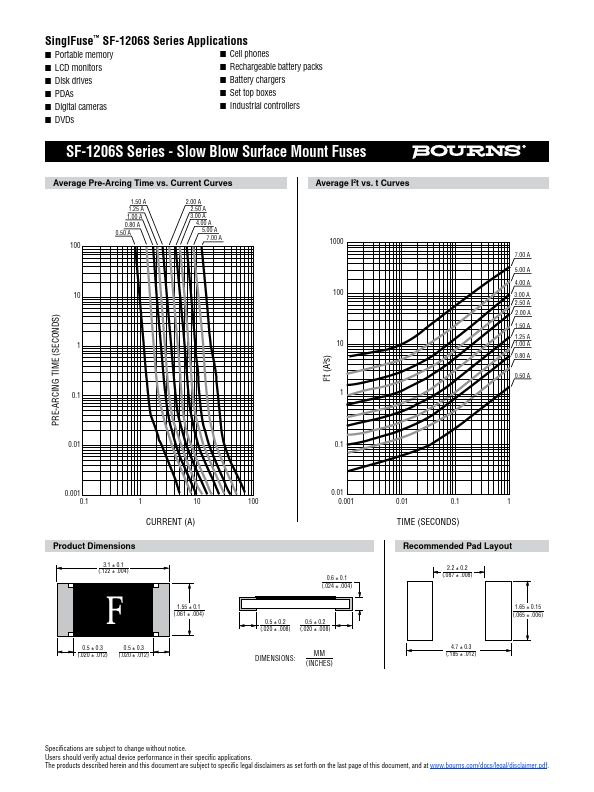

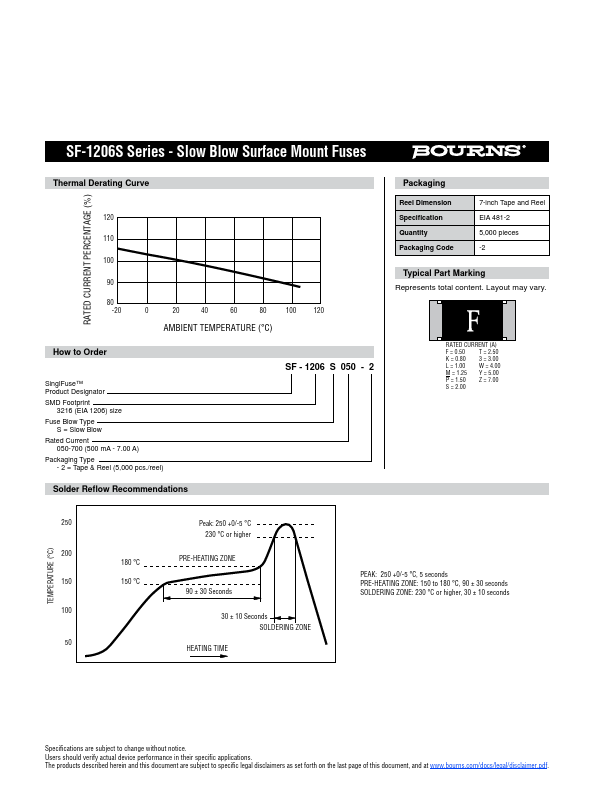

Additional preview pages of the SF-1206S150-2 datasheet.

Slow blow thin film chip fuse for overcurrent protection.
3216 (EIA 1206) miniature footprint.
Surface mount packaging for automated assembly.
UL 248-14 compliant.
RoHS compliant.
and halogen free.
SF-1206S Series - Slow Blow Surface Mount Fuses Clearing Time Characteristics for Series % of Current Rating 100 % 250 % Clearing Time at 25 °C Min. Max. 4 hours.
5 seconds Additional Information Click these links for more information.
