BPM0303CS

30V Complementary MOSFET

BPM0303CS Features

* N-Channel VDS =30V, ID =3.5A RDS(ON) < 58mΩ @ VGS=10V RDS(ON) < 95mΩ @ VGS=4.5V

* P-Channel VDS =-30V, ID = -2.7A RDS(ON) < 100mΩ @ VGS=-10V RDS(ON) < 150mΩ @ VGS=-4.5V

* High power and current handing capability Typical Application Application

* H-bridge

* Inverters Ordering

BPM0303CS Datasheet (799.32 KB)

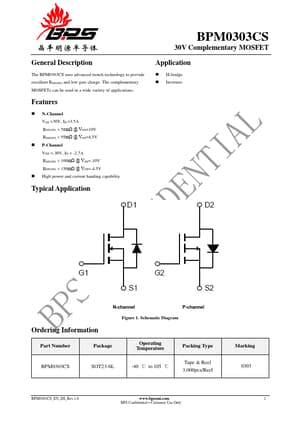

Preview of BPM0303CS PDF

Datasheet Details

Part number:

BPM0303CS

Manufacturer:

BPS

File Size:

799.32 KB

Description:

30v complementary mosfet.
