BPM15-120-Q12 - Encapsulated Isolated Wide Input Bipolar 15-Watt DC-DC Converters

This page provides the datasheet information for the BPM15-120-Q12, a member of the BPM15 Encapsulated Isolated Wide Input Bipolar 15-Watt DC-DC Converters family.

Features

  • Five-sided shielded metal package reduces radiated emissions.
  • Industry standard 1" x 1" x 0.40" encapsulated package and pinout.
  • Wide range input voltages 9-36 and 18-75 Vdc.
  • Bipolar ±5V, ±12V and ±15V outputs.
  • Up to 15 Watts or greater total output power with overtemperature shutdown.
  • Isolation up to 1600 VDC (basic).
  • High efficiency flyback topology.
  • Usable -40 to 85°C temperature range (with derating).
  • Assembly and attachment for RoHS standards.

📥 Download Datasheet

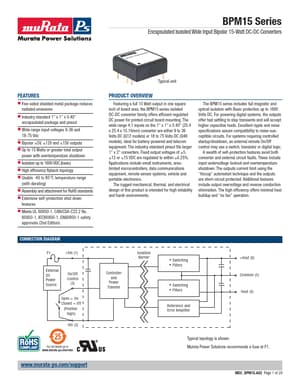

Datasheet preview – BPM15-120-Q12

📁 Similar Datasheet

Other Datasheets by Murata
  • BPM15-120-Q48 - Encapsulated Isolated Wide Input Bipolar 15-Watt DC-DC Converters
  • BPM15-150-Q12 - Encapsulated Isolated Wide Input Bipolar 15-Watt DC-DC Converters
  • BPM15-150-Q48 - Encapsulated Isolated Wide Input Bipolar 15-Watt DC-DC Converters
  • BPM15-050-Q12 - Encapsulated Isolated Wide Input Bipolar 15-Watt DC-DC Converters
  • BPM15-050-Q48 - Encapsulated Isolated Wide Input Bipolar 15-Watt DC-DC Converters
  • BPM15 - Encapsulated Isolated Wide Input Bipolar 15-Watt DC-DC Converters

Full PDF Text Transcription

Click to expand full text
www.murata-ps.com BPM15 Series Encapsulated Isolated Wide Input Bipolar 15-Watt DC-DC Converters FEATURES Five-sided shielded metal package reduces radiated emissions Industry standard 1" x 1" x 0.40" encapsulated package and pinout Wide range input voltages 9-36 and 18-75 Vdc Bipolar ±5V, ±12V and ±15V outputs Up to 15 Watts or greater total output power with overtemperature shutdown Isolation up to 1600 VDC (basic) High efficiency flyback topology Usable -40 to 85°C temperature range (with derating) Assembly and attachment for RoHS standards Extensive self-protection shut down features Meets UL 60950-1, CAN/CSA-C22.2 No.
