BPM15-120-Q48, BPM15, Encapsulated Isolated Wide Input Bipolar 15-Watt DC-DC Converters

www.murata-ps.com BPM15 Series Encapsulated Isolated Wide Input Bipolar 15-Watt DC-DC Converters .

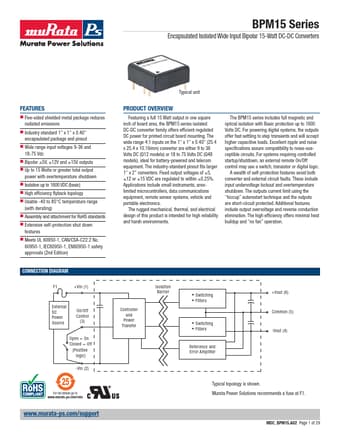

datasheet Preview Page 1 from Datasheet4u.com

BPM15-Murata.pdf

BPM15-120-Q48 Datasheet Preview — This datasheet PDF includes multiple part numbers: BPM15-120-Q48, BPM15. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BPM15-120-Q48, BPM15

Manufacturer:

Murata

File Size:

427.54 KB

Description:

Encapsulated Isolated Wide Input Bipolar 15-Watt DC-DC Converters

Note:

This datasheet PDF includes multiple part numbers: BPM15-120-Q48, BPM15.
Please refer to the document for exact specifications by model.

Features

* Five-sided shielded metal package reduces radiated emissions
* Industry standard 1" x 1" x 0.40" encapsulated package and pinout
* Wide range input voltages 9-36 and 18-75 Vdc
* Bipolar ±5V, ±12V and ±15V outputs
* Up to 15 Watts or greater total output power with overtemperatu
