BT-C55DRD

three digit seven segments display

BT-C55DRD Features

* : 0.56 inch (14.20mm) Digit Height. Continuous uniform segments. Low power requirement.

* Package Dimensions : 8 8.0(.314) 14.20(.560) 19.0(.748) 15.24(.600) Excellent characters appearance. Solid state reliability. Categorized for luminous intensity. Direct drive common cathode. PIN.1

BT-C55DRD General Description

: The BT-C55DRD is a 14.20 mm (0.56") high three digit seven segments display. This product use super red chips, which are made from AlGaAs on GaAs substrate. 2.54x13=33.02(1.300) 5.8±0.5(.228±020) 3. 4. This product have a black face and white segments. This product doesn't contain restriction .

BT-C55DRD Datasheet (289.29 KB)

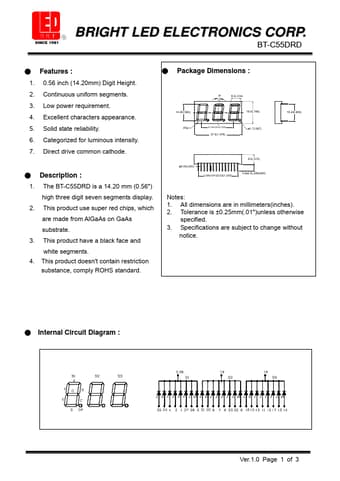

Preview of BT-C55DRD PDF

Datasheet Details

Part number:

BT-C55DRD

Manufacturer:

BRIGHT LED ELECTRONICS

File Size:

289.29 KB

Description:

Three digit seven segments display.
