BVA303C Datasheet - BeRex

DIGITAL VARIABLE GAIN AMPLIFIER

BVA303C Features

* Integrate DSA to Amp Functionality

* 30-5000MHz Broadband Performance

* 21.2dB Gain @ 1.9GHz

* 2.7dB Noise Figure at max gain setting @ 1.9GHz

* 16.6dBm P1dB @ 1.9GHz

* 29.9dBm OIP3 @ 1.9GHz

* No matching circuit needed

* Attenuation:

BVA303C General Description

The BVA303C is a digitally controlled variable gain amplifier (DVGA) is featuring high linearity using the voltage 3V supply with a broadband frequency range of 30MHz to 5000MHz. The BVA303C integrates a high performance digital step attenuator and a high linearity, broadband gain block amplifier us.

BVA303C Datasheet (1.43 MB)

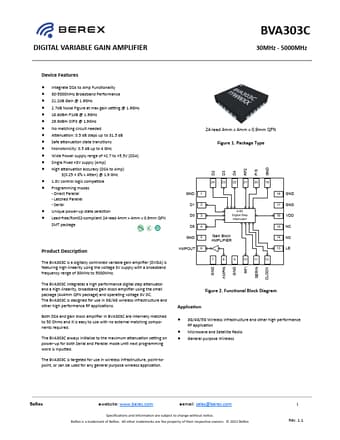

BVA303C Datasheet Preview — Preview of BVA303C PDF

Datasheet Details

Part number:

BVA303C

Manufacturer:

BeRex

File Size:

1.43 MB

Description:

Digital variable gain amplifier.
