BVA305C DIGITAL VARIABLE GAIN AMPLIFIER

The BVA305C is a digitally controlled variable gain amplifier (DVGA) is featuring high linearity using the voltage 3V supply with a broadband frequency range of 40MHz to 5000MHz. The BVA305C integrates a high performance digital step attenuator and a high linearity, broadband gain block amplifier us.

BVA305C Features

* Integrate DSA to Amp Functionality

* 40-5000MHz Broadband Performance

* 14.3dB Gain @ 1.9GHz

* 3.6dB Noise Figure at max gain setting @ 1.9GHz

* 14.0dBm P1dB @ 1.9GHz

* 27.7dBm OIP3 @ 1.9GHz

* No matching circuit needed

* Attenuation:

BVA305C-BeRex.pdf

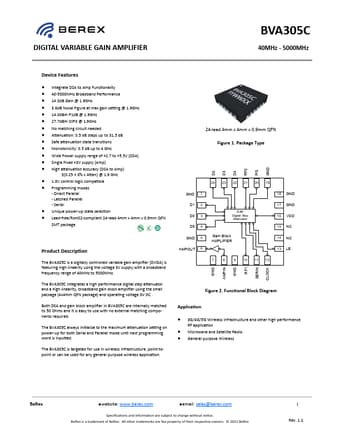

BVA305C Datasheet Preview — Preview of BVA305C PDF

Datasheet Details

Part number:

BVA305C

Manufacturer:

BeRex

File Size:

1.43 MB

Description:

Digital variable gain amplifier.
