BVA3143 Datasheet - BeRex

Medium Power Digital Variable Gain Amplifier

BVA3143 Features

* 28-Pin 6mm x 6mm x 0.95mm LGA Package

* Integrated Amp1 + DSA + Amp2 + Amp3

* A Single +5.0V supply

* 3300 - 3800MHz Frequency Range

* 40dB Gain @ 3.55GHz

* 3.9dB Noise Figure at max gain setting @ 3.55GHz

* 26.2dBm Output P1dB @ 3.55GHz

BVA3143 General Description

The BVA3143 is a digitally controlled variable gain amplifier (DVGA) in a 6mm x 6mm LGA package, with a frequency range of 3300 to 3800 MHz and an operating VDD of 5.0V. BVA3143 is high performance and high dynamic range makes it ideally suited for use in 5G/LTE wireless infrastructure and other hig.

BVA3143 Datasheet (1.92 MB)

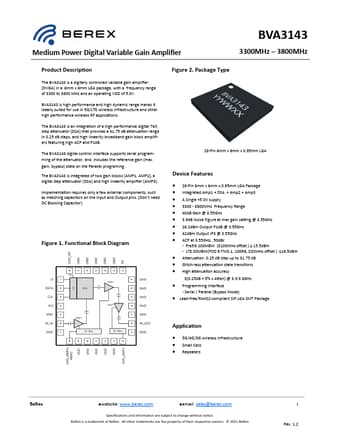

BVA3143 Datasheet Preview — Preview of BVA3143 PDF

Datasheet Details

Part number:

BVA3143

Manufacturer:

BeRex

File Size:

1.92 MB

Description:

Medium power digital variable gain amplifier.
