BR3DG2875M Silicon NPN transistor

BR3DG2875M Description

KTC2875(BR3DG2875M) Rev.C Feb.-2015 DATA SHEET / .
SOT-23 NPN 。Silicon NPN transistor in a SOT-23 Plastic Package.

BR3DG2875M Applications

* 。 For muting and switching applications. / Equivalent Circuit / Pinning 3 2 1 PIN 1：Emitter PIN 2：Base PIN 3：Collector / hFE Classifications & Marking hFE Classifications Symbol hFE Range A 200～700 B 350～1200 Marking HMA HMB http://www. fsbrec. com 1/6 KTC2875(BR3DG2875M) Rev. C Feb. -20

📥 Download Datasheet

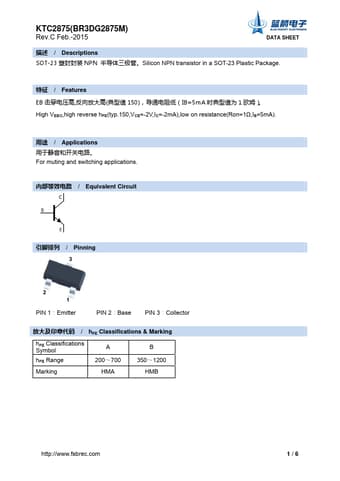

Preview of BR3DG2875M PDF
datasheet Preview Page 2 datasheet Preview Page 3
