BR3DA2118D Silicon NPN transistor

BR3DA2118D Description

2SD2118(BR3DA2118D) Rev.C Feb.-2015 DATA SHEET / .
TO-252 NPN 。Silicon NPN transistor in a TO-252 Plastic Package.

BR3DA2118D Applications

* ，。 Strobe flash applications, medium power amplifier applications. / Equivalent Circuit / Pinning 12 3 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol Q R hFE Range 120～270 180～390 http://www. fsbrec. com 1/6 2SD2118(BR3DA2118D) Rev.

📥 Download Datasheet

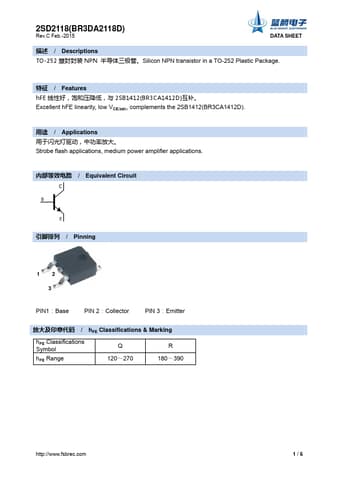

Preview of BR3DA2118D PDF
datasheet Preview Page 2 datasheet Preview Page 3
