BR3DG383TMK Datasheet, Transistor, Blue Rocket Electronics

BR3DG383TMK Features

• Transistor :Gpe=33dB()(f=45MHz),hFE 。 High gain: Gpe=33dB(Typ)(f=45MHz),good linearity of hFE.. / Applications 。 TV final picture IF amplifier applications. / Equivalent Circuit / Pinning 1 2

PDF File Details

Part number:

BR3DG383TMK

Manufacturer:

Blue Rocket Electronics

File Size:

432.18kb

Download:

📄 Datasheet

Description:

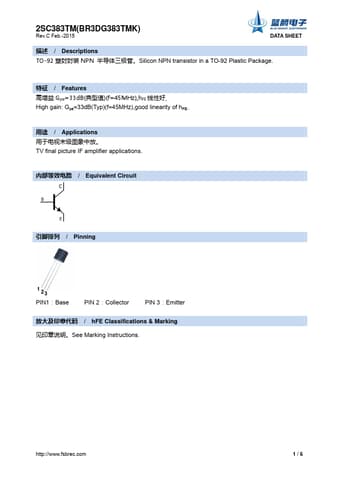

Silicon npn transistor. TO-92 NPN 。Silicon NPN transistor in a TO-92 Plastic Package. / Features :Gpe=33dB()(f=45MHz),hFE 。 High gain: Gpe=33dB(Typ)(f=45

BR3DG383TMK Application

• Applications 。 TV final picture IF amplifier applications. / Equivalent Circuit / Pinning 1 23 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE
