BR3CG3906M Silicon PNP transistor

BR3CG3906M Description

MMBT3906(BR3CG3906M) Rev.C Feb.-2015 DATA SHEET / .
SOT-23 PNP 。Silicon PNP transistor in a SOT-23 Plastic Package.

BR3CG3906M Applications

* 。 General purpose amplifier and switching. / Equivalent Circuit / Pinning 3 2 1 PIN 1：Emitter PIN 2：Base PIN 3：Collector / hFE Classifications & Marking hFE Range Marking 100～300
* H2A http://www. fsbrec. com 1/7 MMBT3906(BR3CG3906M) Rev. C Feb. -2015 / Absolute Maximum Ratings(Ta=25℃)

📥 Download Datasheet

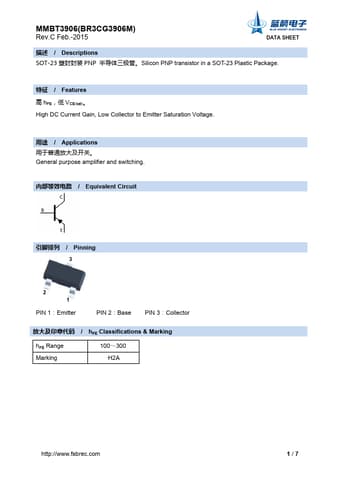

Preview of BR3CG3906M PDF
datasheet Preview Page 2 datasheet Preview Page 3
