BR3CA1370F Silicon PNP transistor

BR3CA1370F Description

2SB1370(BR3CA1370F) Rev.C Feb.-2015 DATA SHEET / .
TO-220F PNP 。Silicon PNP transistor in a TO-220F Plastic Package.

BR3CA1370F Applications

* 。 Audio frequency power amplifier applications. / Equivalent Circuit / Pinning 1 23 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range E 100～200 F 160～320 http://www. fsbrec. com 1/6 2SB1370(BR3CA1370F) Rev. C Feb. -2015 DATA SHEET

📥 Download Datasheet

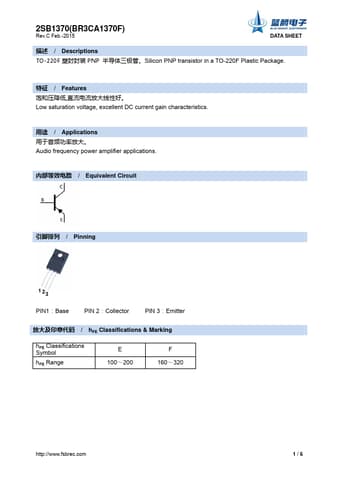

Preview of BR3CA1370F PDF
datasheet Preview Page 2 datasheet Preview Page 3
