PT66002 T1 Transformer

PT66002 Description

www.DataSheet4U.com oH V SC AV ER OM AI SIO PL LA N IA BL S NT E .

PT66002 Features

* Dual SMD package with transmit and
* Lead free version available (see How to Order)
* Lead free versions are RoHS compliant
* receive transformer
* Low height of only 8.6 mm
* Wide operating temperature: -40 °C to +85 °C
* Matched to leading transceiver ICs
* R A

PT66002 Applications

* Telecom PT66002 - T1 Transformer Electrical Specifications @ 25 °C Turns Ratio ± 2 % III : I + II 1:1.15 CT
* III(CT
* ) : IV + V1 CT
* :1 CT
* OCL (mH min. )350 Interwinding Capacitance Cww (pF) between I + II and III < 60 between IV + V and III (CT
* ) < 50 Leakage Inductance Ls

📥 Download Datasheet

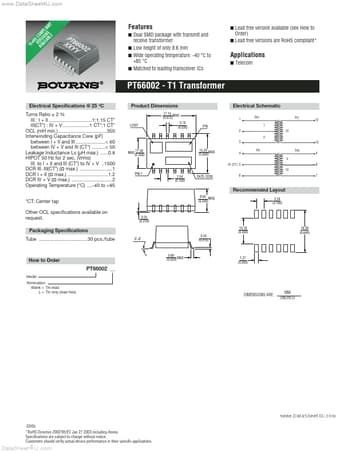

Preview of PT66002 PDF
