PT6601

LCD Driver IC

PT6601 Features

* CMOS Technology

* Supports Display Duties from 1/64 to 1/256

* Operating Supply Voltage: VDD (Logic Block): 5V + 10% VDD -VEE (LCD Block): 12 to 32 V

* Operating Temperature: -20 to +75 oC

* Supports Power Reduction in Large Scale Panel via a Chip Disable Pi

PT6601 General Description

PT6601 is a Segment Driver LCD Driver IC utilizing CMOS Technology used for Large Scale Dot Matrix Liquid Crystal Graphic Displays. 80 bits of display data sent from a controller are latched using a 4-bit parallel transfer technique and LCD drive signals are generated. It can be used with Common LC.

PT6601 Datasheet (77.04 KB)

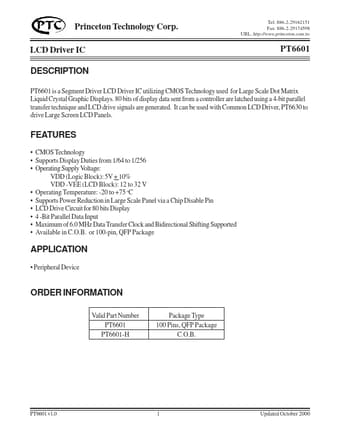

Preview of PT6601 PDF

Datasheet Details

Part number:

PT6601

Manufacturer:

Princeton Technology Corp

File Size:

77.04 KB

Description:

Lcd driver ic.
