PT66003 T1/CEPT Transformer

PT66003 Description

www.DataSheet4U.com oH V SC AV ER OM AI SIO PL LA N IA BL S NT E .

PT66003 Features

* Dual and single through-hole models
* Lead free versions are RoHS compliant
* available
* Low height of only 6.3 mm
* Matched to leading transceiver ICs
* Lead free version available (see How to Order)

PT66003 Applications

* Telecom PT66003 - T1/CEPT Transformer Electrical Specifications @ 25 °C Turns Ratio ± 5 % (I + II : III) 1 CS
* :1 OCL (mH min. ) 1.2 Interwinding Capacitance Cww (pF max. )25 Leakage Inductance Ls (µH max. ) 0.5 HIPOT 50 Hz for 2 sec. (Vrms) I + II to III 1500 DCR I + II (Ω max. ) 0.7 DCR III

📥 Download Datasheet

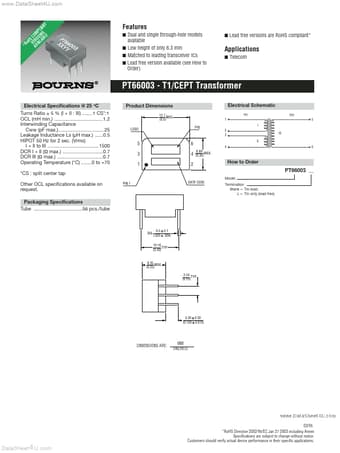

Preview of PT66003 PDF
