UDD32C03L01, Low Capacitance TVS Arrays

UDD32CXXL01 SERIES Low Capacitance TVS Arrays The series are an ultra low capacitance TVS array designed to protect high speed data interfaces.This.

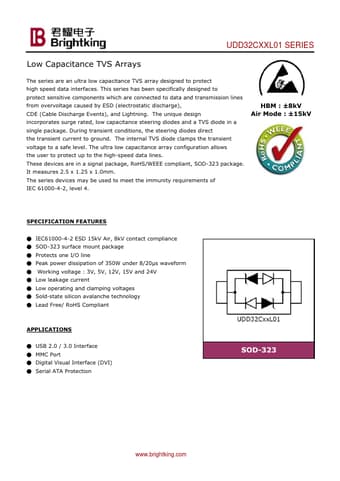

datasheet Preview Page 1 from Datasheet4u.com

UDD32C03L01-Brightking.pdf

UDD32C03L01 Datasheet Preview — Preview of UDD32C03L01 PDF

Datasheet Details

Part number:

UDD32C03L01

Manufacturer:

Brightking

File Size:

264.22 KB

Description:

Low Capacitance TVS Arrays

Features

* ˗ IEC61000-4-2 ESD 15kV Air, 8kV contact compliance ˗ SOD-323 surface mount package ˗ Protects one I/O line ˗ Peak power dissipation of 350W under 8/20μs waveform ˗ Working voltage : 3V, 5V, 12V, 15V and 24V ˗ Low leakage current ˗ Low operating and clamping voltages ˗ Sold-state silicon avalanche t

Applications

* ˗ USB 2.0 / 3.0 Interface ˗ MMC Port ˗ Digital Visual Interface (DVI) ˗ Serial ATA Protection SOD-323 SDCxxT www. brightking. com MAXIMUM RATINGS Rating Peak Pulse Power (8/20μs waveform) ESD Voltage (HBM Contact) ESD Voltage (AIR Contact) Lead Soldering Temperature Storage & Operating Temperature
