Datasheet Details
Part number:
UDD32C12L01, UDD32C03L01
Manufacturer:
Brightking
File Size:
264.22 KB
Description:
Low capacitance tvs arrays.
Note:
This datasheet PDF includes multiple part numbers: UDD32C12L01, UDD32C03L01.
Please refer to the document for exact specifications by model.

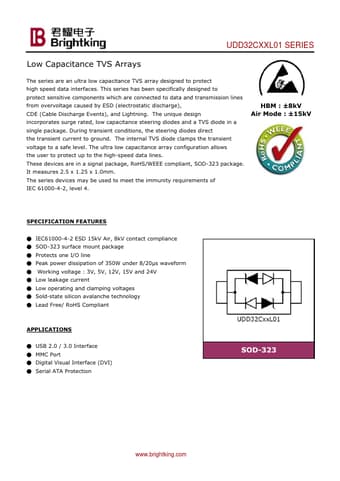

UDD32C12L01, UDD32C03L01, Low Capacitance TVS Arrays
UDD32CXXL01 SERIES Low Capacitance TVS Arrays The series are an ultra low capacitance TVS array designed to protect high speed data interfaces.
This series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and Lightning.
The unique design incorporates surge rated, low capacitance steering diodes and a TVS diode in a single package.
During trans
UDD32C12L01 Features
* ˗ IEC61000-4-2 ESD 15kV Air, 8kV contact compliance ˗ SOD-323 surface mount package ˗ Protects one I/O line ˗ Peak power dissipation of 350W under 8/20μs waveform ˗ Working voltage : 3V, 5V, 12V, 15V and 24V ˗ Low leakage current ˗ Low operating and clamping voltages ˗ Sold-state silicon avalanche t
