UDD32C15L01 Datasheet, Arrays, Brightking

UDD32C15L01 Features

  • Arrays ˗ IEC61000-4-2 ESD 15kV Air, 8kV contact compliance ˗ SOD-323 surface mount package ˗ Protects one I/O line ˗ Peak power dissipation of 350W under 8/20μs waveform ˗ Working voltage : 3V

PDF File Details

Part number:

UDD32C15L01

Manufacturer:

Brightking

File Size:

264.22kb

Download:

📄 Datasheet

Description:

Low capacitance tvs arrays.

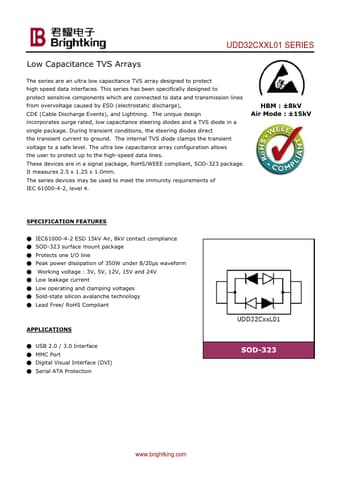

Datasheet Preview: UDD32C15L01 📥 Download PDF (264.22kb)
Page 2 of UDD32C15L01 Page 3 of UDD32C15L01

UDD32C15L01 Application

  • Applications ˗ USB 2.0 / 3.0 Interface ˗ MMC Port ˗ Digital Visual Interface (DVI) ˗ Serial ATA Protection SOD-323 SDCxxT www.brightking.com MAX
