UDD32C08L01

Electrostatic Discharged Protection Devices

Brightking

UDD32C08L01 Features

* integrated low capacitance compensation diodes that reduce the typical capacitance to 1.0pF per line. This combined with low leakage current, means signal integrity is preserved in high- speed applications such as 10/100/1000 Ethernet. The device may be used to protect two high-speed line pairs.

UDD32C08L01 General Description

The UDD32C08L01 of transient voltage suppressors are designed to protect low voltage, state-of-the- art CMOS semiconductors from transients caused by electrostatic discharge (ESD), cable discharge events (CDE), lightning and other induced voltage surges. The device is constructed using EPD proc.

UDD32C08L01 Datasheet (265.55 KB)

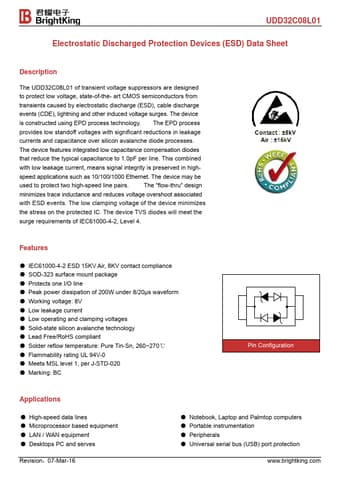

UDD32C08L01 Datasheet Preview — Preview of UDD32C08L01 PDF

Datasheet Details

Part number:

UDD32C08L01

Manufacturer:

Brightking

File Size:

265.55 KB

Description:

Electrostatic discharged protection devices.
