EBLC03 - Ultra LOW CAPACITA NCE TVS ARRAY

EBLC03 Description

Ultra LOW CAPACITA NCE TVS ARRAY EBLC03 thru EBLC24C The EBLCxx and EBLCxxC Series are ultra low capacitance transient voltage suppressor arrays, desi.

EBLC03 Features

* Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV Exceeds Level 4: Handles 10kV Contact & 25kV Air Discharge
* Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns
* Compatible with IEC 61000-4-5 (Surge)
* 350 Watts Peak Pulse Power per Line (tp = 8/20 s)

EBLC03 Applications

* such as portable electronics and SMART phones. This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20 s waveshape. The EBLCxx and EBLCxxC Series meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequen

📥 Download Datasheet

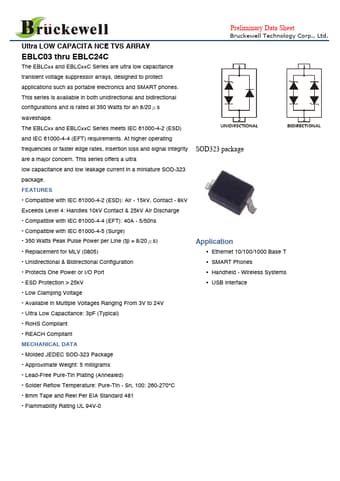

Preview of EBLC03 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EBLC03
Manufacturer
Bruckewell
File Size
152.49 KB
Datasheet
EBLC03-Bruckewell.pdf
Description
Ultra LOW CAPACITA NCE TVS ARRAY
