EBLC05, EBLC03 Datasheet - Bruckewell

EBLC05 Ultra LOW CAPACITA NCE TVS ARRAY

Ultra LOW CAPACITA NCE TVS ARRAY EBLC03 thru EBLC24C The EBLCxx and EBLCxxC Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones. This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20 s waveshape. The EBLCxx and EBLCxxC Series meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequencies or faster edge r.

EBLC05 Features

* Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV Exceeds Level 4: Handles 10kV Contact & 25kV Air Discharge

* Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns

* Compatible with IEC 61000-4-5 (Surge)

* 350 Watts Peak Pulse Power per Line (tp = 8/20 s)

EBLC03-Bruckewell.pdf

This datasheet PDF includes multiple part numbers: EBLC05, EBLC03. Please refer to the document for exact specifications by model.

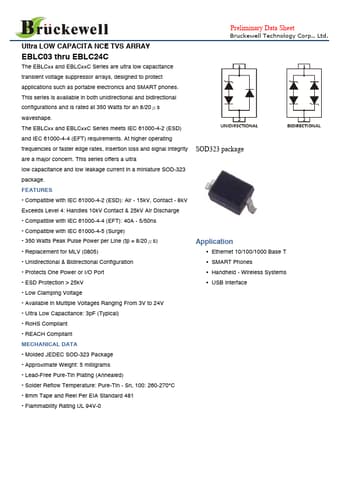

EBLC05 Datasheet Preview Page 2 EBLC05 Datasheet Preview Page 3

Datasheet Details

Part number:

EBLC05, EBLC03

Manufacturer:

Bruckewell

File Size:

152.49 KB

Description:

Ultra low capacita nce tvs array.

Note:

This datasheet PDF includes multiple part numbers: EBLC05, EBLC03.
Please refer to the document for exact specifications by model.
