EBLC03C, EBLC03, Ultra LOW CAPACITA NCE TVS ARRAY

Ultra LOW CAPACITA NCE TVS ARRAY EBLC03 thru EBLC24C The EBLCxx and EBLCxxC Series are ultra low capacitance transient voltage suppressor arrays, desi.

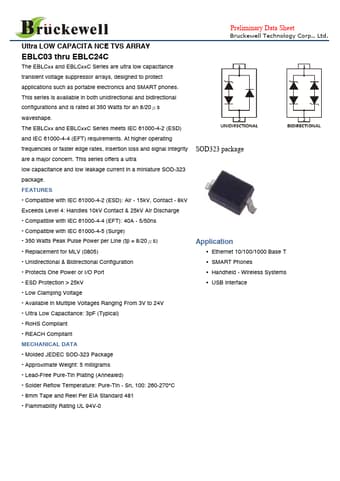

datasheet Preview Page 1 from Datasheet4u.com

EBLC03-Bruckewell.pdf

EBLC03C Datasheet Preview — This datasheet PDF includes multiple part numbers: EBLC03C, EBLC03. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EBLC03C, EBLC03

Manufacturer:

Bruckewell

File Size:

152.49 KB

Description:

Ultra LOW CAPACITA NCE TVS ARRAY

Note:

This datasheet PDF includes multiple part numbers: EBLC03C, EBLC03.
Please refer to the document for exact specifications by model.

Features

* Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV Exceeds Level 4: Handles 10kV Contact & 25kV Air Discharge
* Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns
* Compatible with IEC 61000-4-5 (Surge)
* 350 Watts Peak Pulse Power per Line (tp = 8/20 s)

Applications

* such as portable electronics and SMART phones. This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20 s waveshape. The EBLCxx and EBLCxxC Series meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequen
