EM513 - Standard Rectifier

Bruckewell

📥 Download Datasheet

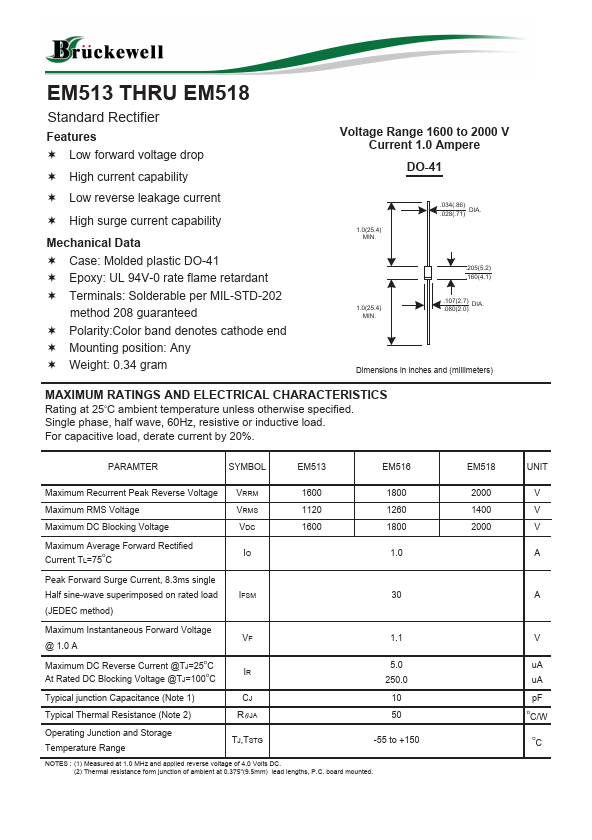

EM513 Datasheet Preview — Preview of EM513 PDF

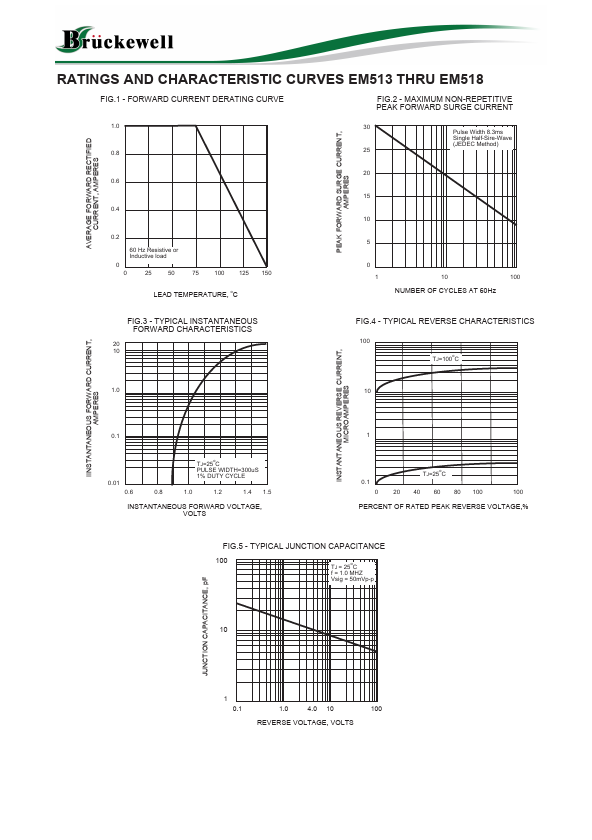

datasheet Preview Page 2

Datasheet Details

Part number	EM513
Manufacturer	Bruckewell
File Size	630.00 KB
Description	Standard Rectifier
Datasheet	EM513-Bruckewell.pdf

EM513 Product details

Features

Low forward voltage drop.
High current capability.
Low reverse leakage current.
High surge current capability Mechanical Data.
Case: Molded plastic DO-41.
Epoxy: UL 94V-0 rate flame retardant.
Terminals: Solderable per MIL-STD-202 method 208 guaranteed.
Polarity:Color band denotes cathode end.
Mounting position: Any.
Weight: 0.34 gram Voltage Range 1600 to 2000 V Current 1.0 Ampere DO-41 1.0(25.4) MIN. 1.
