EM5103 - Low Dropout LDO

Datasheet Summary

Description

EM5103 is a 3A low dropout linear regulator designed for low dropout and high current applications.

This device works with dual supplies, a control input for the control circuitry and a power input as low as 1.2V for providing current to output.

Features

  • 3A output current and ultra-low-drop output voltage as well as full protection functions. VOUT can be as low as 0.8V. Ordering Information Part Number EM5103GE EM5103VT Package PSOP-8 Lead-Free DFN3X3-10L Lead-Free Remark Features VIN Range 1.2V to 5.5V VOUT is Adjustable (0.8V Min) Excellent Line Regulation Excellent Load Regulation 3A Guaranteed Output Current.
  • 300mV @ 3A Dropout Voltage OTP and OCP Functions Very Low On-Resistance Enable & Power good Signal.
  • Check thermal design.

📥 Download Datasheet

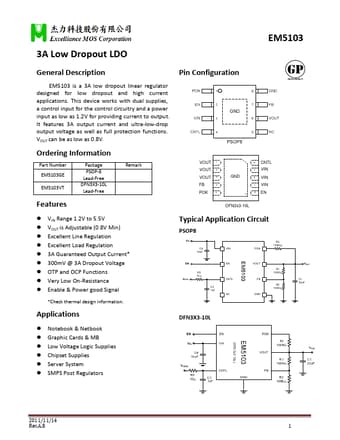

Datasheet preview – EM5103

Datasheet Details

Part number EM5103
Manufacturer Excelliance MOS
File Size 325.99 KB
Description Low Dropout LDO
Datasheet download datasheet EM5103 Datasheet
