EM513G - General Purpose Rectifiers Glass Passivation Junction

Datasheet Summary

Features

‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Primary Characteristics IF 1 VRRM 1600~2000 IFSM 30 VF 1.1 TJ max 150 A V A V °C Mechanical Data ‧Cases: DO-41 ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.318 grams (approximate) Ordering Information Part No. Remark.

Eris

📥 Download Datasheet

Datasheet Details

Part number	EM513G
Manufacturer	Eris
File Size	198.74 KB
Description	General Purpose Rectifiers Glass Passivation Junction
Datasheet	EM513G Datasheet
Additional preview pages of the EM513G datasheet.

📁 Similar Datasheet

EM513G - GENERAL PURPOSE RECTIFIER (MEI SEMI)
EM513G - SILICON RECTIFIERS (CUMSUMI)
EM513 - PLASTIC SILICON RECTIFIERS (PAN JIT)
EM513 - Sillicon Rectifier (UPM)
EM513 - Standard Recovery Rectifier Diodes (Diotec)
EM513 - High Voltage Silicon Diode (Thinki Semiconductor)
EM513 - Plastic Silicon Rectifiers (Luguang Electronic)
EM513 - General Purpose Plastic Rectifier (MCC)
EM513 - AXIAL SILASTIC GUARD JUNCTION STANDARD RECTIFIER (MIC)
EM513 - (EM513 - EM518) Axial lead diode (Semikron)

Other Datasheets by Eris

EM516G - General Purpose Rectifiers Glass Passivation Junction
EM518G - General Purpose Rectifiers Glass Passivation Junction

Full PDF Text Transcription

Click to expand full text

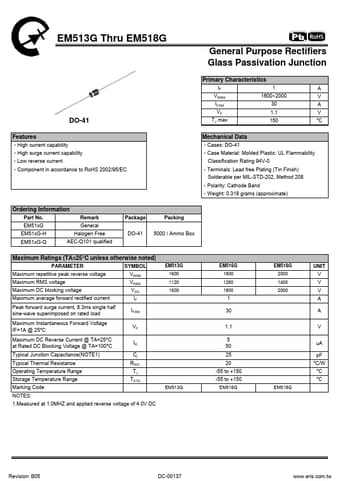

EM513G Thru EM518G General Purpose Rectifiers Glass Passivation Junction DO-41 Features ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Primary Characteristics IF 1 VRRM 1600~2000 IFSM 30 VF 1.1 TJ max 150 A V A V °C Mechanical Data ‧Cases: DO-41 ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.318 grams (approximate) Ordering Information Part No.
