EM5102 - Low Dropout LDO

Datasheet Summary

Description

EM5102 is a 2A low dropout linear regulator designed for low dropout and high current applications.

This device works with dual supplies, a control input for the control circuitry and a power input as low as 1.2V for providing current to output.

Features

  • 2A output current and ultra-low-drop output voltage as well as full protection functions. VOUT can be as low as 0.8V. Notebook & Netbook Graphic Cards & MB Low Voltage Logic Supplies Chipset Supplies Server System SMPS Post Regulators Ordering Information Pin Configuration Part Number EM5102GE Package PSOP-8 Lead-Free Remark Features VIN Range 1.2V to 5.5V VOUT is Adjustable (0.8V Min) Excellent Line Regulation Excellent Load Regulation 2A Guaranteed Output Current 300mV @ 2A Dropout Volt.

📥 Download Datasheet

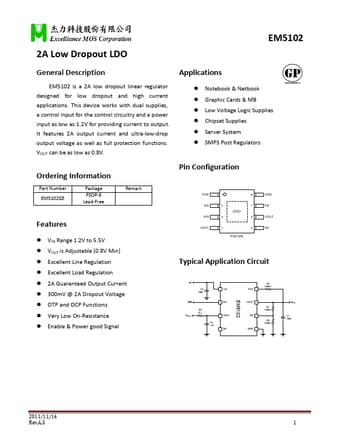

Datasheet preview – EM5102

Datasheet Details

Part number EM5102
Manufacturer Excelliance MOS
File Size 343.02 KB
Description Low Dropout LDO
Datasheet download datasheet EM5102 Datasheet
