EM516 - Sillicon Rectifier

This page provides the datasheet information for the EM516, a member of the EM513 Sillicon Rectifier family.

Datasheet Summary

Features

  • The Plastic package carries Underwiters Laboratory Flammability Classification 94V-0.
  • Construction utilizes void-free molded plastic technique.
  • Low reverse leakage.
  • Low forward voltage drop.
  • High forward surge current capadility.
  • High current capability.
  • High reliadility Mechanical Data.
  • Case: Molded plastic body.
  • Terminals: Lead solderable per MIL-STD-750,method 2026.
  • Polarity: Color band denotes cathode end.
  • Mounting Position: Any.
  • W.

📥 Download Datasheet

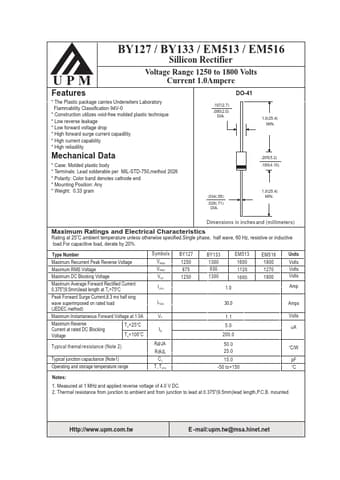

Datasheet preview – EM516

Datasheet Details

Part number EM516
Manufacturer UPM
File Size 58.51 KB
Description Sillicon Rectifier
Datasheet download datasheet EM516 Datasheet
Additional preview pages of the EM516 datasheet.

📁 Similar Datasheet

  • EM516 - Standard Recovery Rectifier Diodes (Diotec)
  • EM516 - Silicon Rectifiers (JGD)
  • EM516 - High Voltage Silicon Diode (Thinki Semiconductor)
  • EM516 - Plastic Silicon Rectifiers (Luguang Electronic)
  • EM516 - General Purpose Plastic Rectifier (MCC)
  • EM516 - AXIAL SILASTIC GUARD JUNCTION STANDARD RECTIFIER (MIC)
  • EM516 - (EM513 - EM518) Axial lead diode (Semikron)
  • EM516 - SILICON RECTIFIERS (CUMSUMI)
  • EM516 - AXIAL LEADED SILICON RECTIFIER DIODES (Sunmate)
  • EM516 - Standard Rectifier (Bruckewell)
Other Datasheets by UPM
  • EM513 - Sillicon Rectifier

Full PDF Text Transcription

Click to expand full text
BY127 / BY133 / EM513 / EM516 Sillicon Rectifier UPM Voltage Range 1250 to 1800 Volts Current 1.0Ampere Features * The Plastic package carries Underwiters Laboratory Flammability Classification 94V-0 * Construction utilizes void-free molded plastic technique * Low reverse leakage * Low forward voltage drop * High forward surge current capadility * High current capability * High reliadility Mechanical Data * Case: Molded plastic body * Terminals: Lead solderable per MIL-STD-750,method 2026 * Polarity: Color band denotes cathode end * Mounting Position: Any * Weight: 0.33 gram DO-41 .107(2.7) .080(2.0) DIA. 1.0(25.4) MIN. .034(.85) .028(.71) DIA. .205(5.2) .180(4.10) 1.0(25.4) MIN.
