EM516G - General Purpose Rectifiers Glass Passivation Junction

This page provides the datasheet information for the EM516G, a member of the EM513G General Purpose Rectifiers Glass Passivation Junction family.

Datasheet Summary

Features

  • ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Primary Characteristics IF 1 VRRM 1600~2000 IFSM 30 VF 1.1 TJ max 150 A V A V °C Mechanical Data ‧Cases: DO-41 ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.318 grams (approximate) Ordering Information Part No. Remark.

📥 Download Datasheet

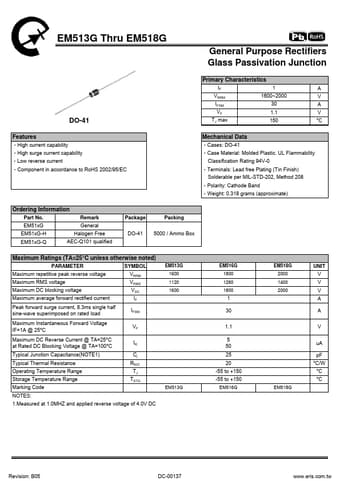

Datasheet preview – EM516G

Datasheet Details

Part number EM516G
Manufacturer Eris
File Size 198.74 KB
Description General Purpose Rectifiers Glass Passivation Junction
Datasheet download datasheet EM516G Datasheet
Additional preview pages of the EM516G datasheet.

📁 Similar Datasheet

  • EM516G - GENERAL PURPOSE RECTIFIER (MEI SEMI)
  • EM516G - SILICON RECTIFIERS (CUMSUMI)
  • EM516 - Sillicon Rectifier (UPM)
  • EM516 - Standard Recovery Rectifier Diodes (Diotec)
  • EM516 - Silicon Rectifiers (JGD)
  • EM516 - High Voltage Silicon Diode (Thinki Semiconductor)
  • EM516 - Plastic Silicon Rectifiers (Luguang Electronic)
  • EM516 - General Purpose Plastic Rectifier (MCC)
  • EM516 - AXIAL SILASTIC GUARD JUNCTION STANDARD RECTIFIER (MIC)
  • EM516 - (EM513 - EM518) Axial lead diode (Semikron)
Other Datasheets by Eris
  • EM513G - General Purpose Rectifiers Glass Passivation Junction
  • EM518G - General Purpose Rectifiers Glass Passivation Junction

Full PDF Text Transcription

Click to expand full text
EM513G Thru EM518G General Purpose Rectifiers Glass Passivation Junction DO-41 Features ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Primary Characteristics IF 1 VRRM 1600~2000 IFSM 30 VF 1.1 TJ max 150 A V A V °C Mechanical Data ‧Cases: DO-41 ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.318 grams (approximate) Ordering Information Part No.
