EM513 - PLASTIC SILICON RECTIFIERS

Datasheet Summary

Features

  • Low forward voltage drop.
  • High current capability.
  • High reliability.
  • High surge current capability.
  • Exceeds environmental standards of MIL-S-19500/228.
  • Lead free in compliance with EU RoHS 2011/65/EU directive.

📥 Download Datasheet

Datasheet preview – EM513

Datasheet Details

Part number EM513
Manufacturer PAN JIT
File Size 60.50 KB
Description PLASTIC SILICON RECTIFIERS
Datasheet download datasheet EM513 Datasheet
Additional preview pages of the EM513 datasheet.

📁 Similar Datasheet

  • EM513 - Sillicon Rectifier (UPM)
  • EM513 - Standard Recovery Rectifier Diodes (Diotec)
  • EM513 - High Voltage Silicon Diode (Thinki Semiconductor)
  • EM513 - Plastic Silicon Rectifiers (Luguang Electronic)
  • EM513 - General Purpose Plastic Rectifier (MCC)
  • EM513 - AXIAL SILASTIC GUARD JUNCTION STANDARD RECTIFIER (MIC)
  • EM513 - (EM513 - EM518) Axial lead diode (Semikron)
  • EM513 - Silicon Rectifiers (JGD)
  • EM513 - SILICON RECTIFIERS (CUMSUMI)
  • EM513 - AXIAL LEADED SILICON RECTIFIER DIODES (Sunmate)
Other Datasheets by PAN JIT

    Full PDF Text Transcription

    Click to expand full text

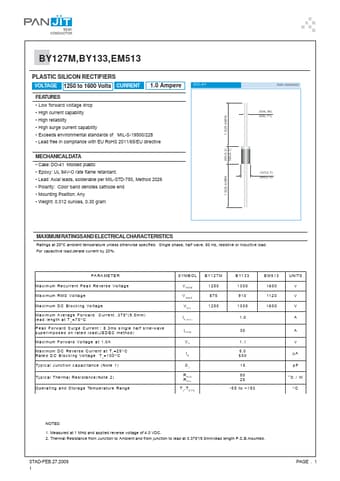

    BY127M,BY133,EM513 PLASTIC SILICON RECTIFIERS VOLTAGE 1250 to 1600 Volts CURRENT 1.0 Ampere FEATURES • Low forward voltage drop • High current capability • High reliability • High surge current capability • Exceeds environmental standards of MIL-S-19500/228 • Lead free in compliance with EU RoHS 2011/65/EU directive MECHANICALDATA • Case: DO-41 Molded plastic • Epoxy: UL 94V-O rate flame retardant. • Lead: Axial leads, solderable per MIL-STD-750, Method 2026 • Polarity: Color band denotes cathode end • Mounting Position: Any • Weight: 0.012 ounces, 0.30 gram DO-41 1.0(25.4)MIN. .205(5.2) .160(4.1) 1.0(25.4)MIN. Unit: inch(mm) .034(.86) .028(.71) .107(2.7) .080(2.0) MAXIMUM RATINGSAND ELECTRICALCHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified.
