MBR20L45CT Dual Common-Cathode Ultra Low VF Schottky Rectifier

MBR20L45CT Description

MBR20L45CT Product profile Dual Common-Cathode Ultra Low VF Schottky Rectifier General .
Rectifiers 20 Amp 45V Features. Guard ring for overvoltage protection. Lower power losses, high efficiency. Low forward vol.

MBR20L45CT Features

* Guard ring for overvoltage protection
* Lower power losses, high efficiency
* Low forward voltage drop
* Low leakage current
* High forward surge capability
* High frequency operation
* Solder Dip 260 °C, 40 s
* Component in accordanc

MBR20L45CT Applications

* For use in high frequency rectifier of switching mode power supplies, freewheeling diodes, dc-to-dc converters or polarity protection application. Mechanical data Case: TO-220AB Molding compound meets UL 94 V-0 flammability rating Terminals: Matte tin plated leads, solderable per meets JESD 201 Pol

📥 Download Datasheet

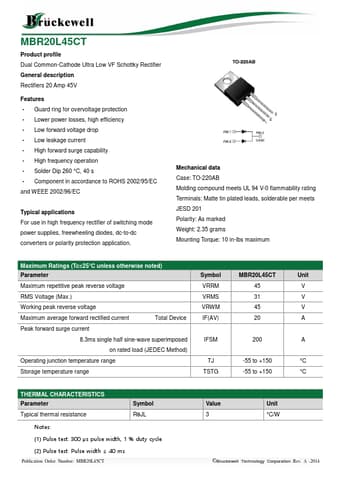

Preview of MBR20L45CT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR20L45CT
Manufacturer
Bruckewell
File Size
101.20 KB
Datasheet
MBR20L45CT-Bruckewell.pdf
Description
Dual Common-Cathode Ultra Low VF Schottky Rectifier
