DAC2814 DUAL 12-BIT DIGITAL-TO-ANALOG CONVERTER

The DAC2814 is one in a family of dual and quad 12bit digital-to-analog converters. Serial, 8-bit, 12-bit interfaces are available. The DAC2814 is complete. It contains CMOS logic, switches, a high-performance buried-zener reference, and low-noise bipolar output amplifiers. No external components ar.

DAC2814 Features

* q COMPLETE DUAL DAC

* INCLUDES INTERNAL REFERENCES AND OUTPUT AMPLIFIERS q GUARANTEED SPECIFICATIONS OVER TEMPERATURE q GUARANTEED MONOTONIC OVER TEMPERATURE q HIGH-SPEED SERIAL INTERFACE (10MHz CLOCK) q LOW POWER: 300mW (150mW/DAC) q LOW GAIN DRIFT: 5ppm/°C q LOW NONLINEARITY: ±1/2 LSB max

DAC2814_Burr-BrownCorporation.pdf

This datasheet PDF includes multiple part numbers: DAC2814, DAC2814_Burr. Please refer to the document for exact specifications by model.

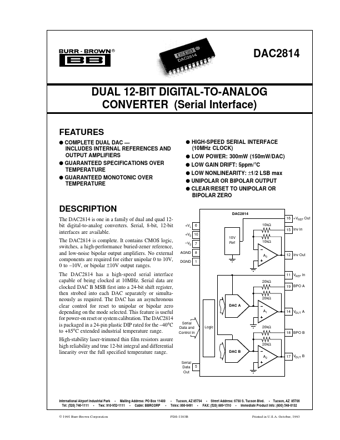

DAC2814 Datasheet Preview Page 2 DAC2814 Datasheet Preview Page 3
