DAC2900 Datasheet, Converter, Burr-Brown Corporation

DAC2900 Features

  • Converter q 125MSPS UPDATE RATE q SINGLE SUPPLY: +3.3V or +5V q HIGH SFDR: 68dB at fOUT = 20MHz q LOW GLITCH: 2pVs q LOW POWER: 310mW at +5V q INTERNAL REFERENCE q POWER-DOWN MODE: 23mW APPLICAT

PDF File Details

Part number:

DAC2900

Manufacturer:

Burr-Brown Corporation

File Size:

416.35kb

Download:

📄 Datasheet

Description:

Dual/ 10-bit/ 125msps digital-to-analog converter. The DAC2900 is a monolithic, 10-bit, dual-channel, high-speed Digital-to-Analog Converter (DAC), and is optimized to provide high dyn

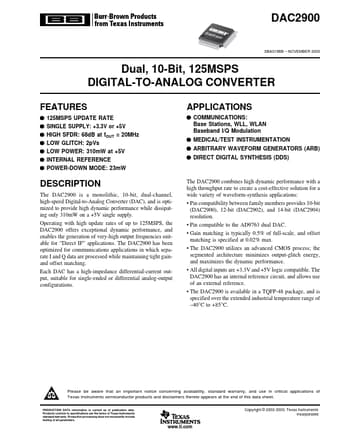

Datasheet Preview: DAC2900 📥 Download PDF (416.35kb)
Page 2 of DAC2900 Page 3 of DAC2900

DAC2900 Application

  • Applications q COMMUNICATIONS: Base Stations, WLL, WLAN Baseband I/Q Modulation q MEDICAL/TEST INSTRUMENTATION q ARBITRARY WAVEFORM GENERATORS (ARB)

TAGS

DAC2900
Dual
10-Bit
125MSPS
DIGITAL-TO-ANALOG
CONVERTER
Burr-Brown Corporation
