DAC2815 DUAL 12-BIT DIGITAL-TO-ANALOG CONVERTER

The DAC2815 is one in a family of dual and quad 12bit digital-to-analog converters (DACs). Serial, 8-bit, 12-bit interfaces are available. The DAC2815 is complete. It contains CMOS logic, switches, a high-performance buried-zener reference, and low-noise bipolar output amplifiers. No external compon.

DAC2815 Features

* q COMPLETE DUAL DAC

* INCLUDES INTERNAL REFERENCES AND OUTPUT AMPLIFIERS q GUARANTEED SPECIFICATIONS OVER TEMPERATURE q GUARANTEED MONOTONIC OVER TEMPERATURE q HIGH-SPEED 8 + 4-BIT PARALLEL INTERFACE q LOW POWER: 300mW (150mW/DAC) q LOW GAIN DRIFT: 5ppm/°C q LOW NONLINEARITY: ±1/2 LSB max q

DAC2815_Burr-BrownCorporation.pdf

This datasheet PDF includes multiple part numbers: DAC2815, DAC2815_Burr. Please refer to the document for exact specifications by model.

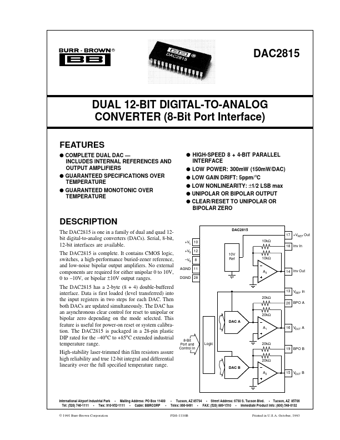

DAC2815 Datasheet Preview Page 2 DAC2815 Datasheet Preview Page 3

Datasheet Details

Part number:

DAC2815, DAC2815_Burr

Manufacturer:

Burr-Brown Corporation

File Size:

224.16 KB

Description:

Dual 12-bit digital-to-analog converter.

Note:

This datasheet PDF includes multiple part numbers: DAC2815, DAC2815_Burr.
Please refer to the document for exact specifications by model.
